Solar Charge Controller Calculator

Size an MPPT solar charge controller for RV, marine, van, cabin, and off-grid battery systems. Enter your panel specs, battery voltage, and solar array layout to estimate controller voltage and amperage requirements.

Shop MPPT Charge Controllers Get Sizing Help
Built for real off-grid layouts

Checks array watts, cold-weather voltage, controller output amperage, PV short-circuit current, and fuse guidance in one easy tool.

Solar Array Inputs

Tip: Voc, Isc, wattage, and temperature coefficient should come from the solar panel data label or manufacturer spec sheet.

Results

Total Solar Array—
Cold-Adjusted PV Voltage—
Required Output Current—
Array Short Circuit Current—

Recommended Controller

Enter your solar panel specs to calculate a recommendation.

Guidance only: Final equipment selection should account for the charge controller manual, wire length, conductor size, fuse/breaker ratings, installation environment, and applicable electrical code.

1. Match PV voltage

Your controller PV input voltage rating must be higher than the array’s cold-weather open-circuit voltage.

2. Match charge current

The controller output amperage should be sized for total solar watts divided by the battery bank voltage, with a practical margin.

3. Verify wiring protection

Parallel strings can increase current. Use properly rated PV wire, breakers, fuses, combiner hardware, and disconnects.

Need a complete RV or off-grid solar package?

Infinite Power Supply can help match panels, MPPTs, batteries, inverters, cabling, fusing, and install-ready accessories.

Shop Solar PanelsShop Kits

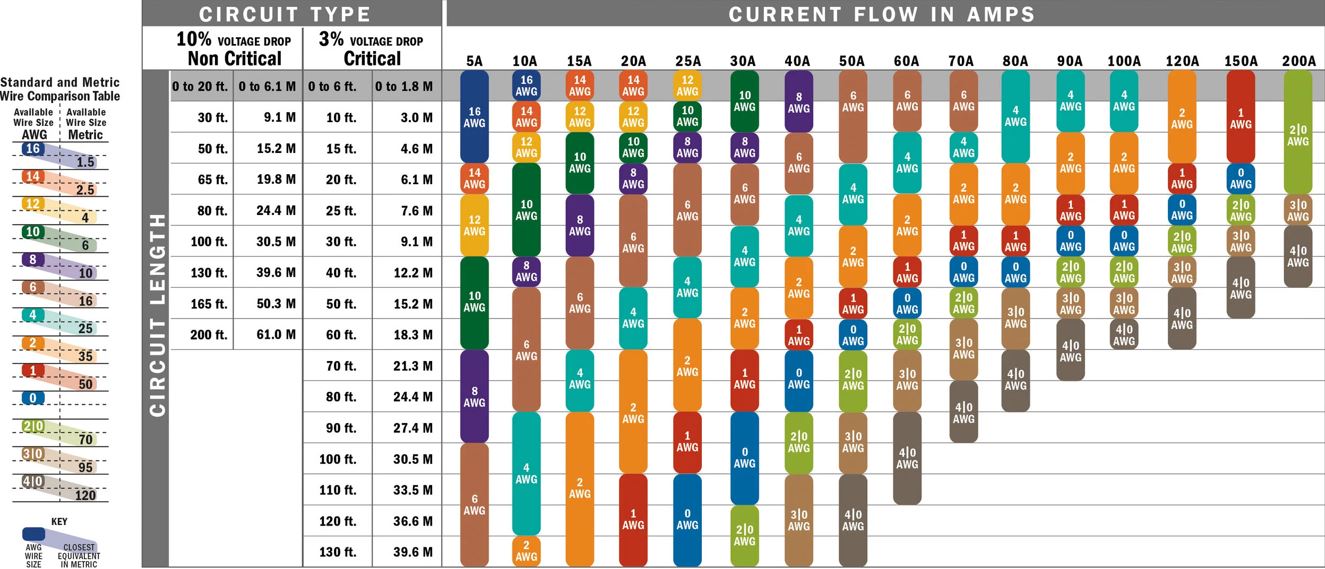

Wire Sizing Chart

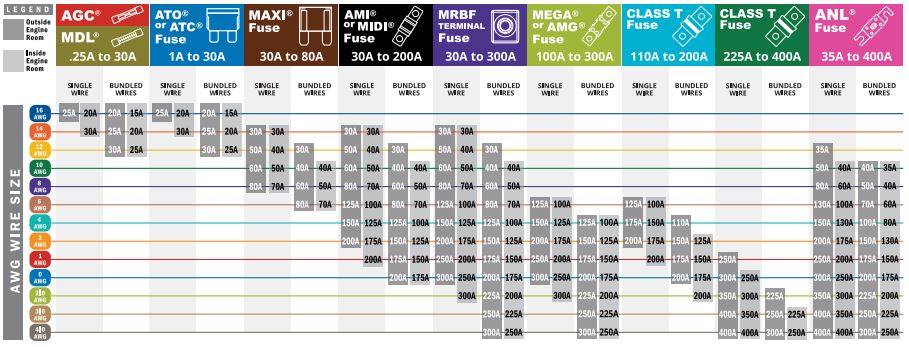

Fuse Sizing Chart
