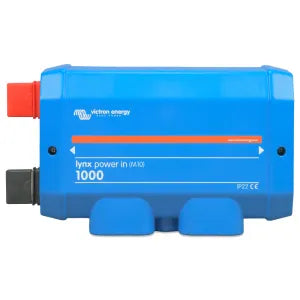

Victron Energy Lynx Power In (M10)

A modular DC busbar used to connect batteries to the Lynx DC distribution system, available as M8 and M10 models.

---



TECHNICAL SPECIFICATIONS



POWER

Voltage range: 9 – 60Vdc
Current rating: 1000Adc continuous



CONNECTIONS

Busbar: M10



PHYSICAL

Enclosure material: ABS
Enclosure dimensions (H x W x D): 290 x 170 x 80 mm (11.42 x 6.69 x 3.15 in)
Unit weight: 2.1 kg (4.63 lbs)
Busbar material: Tinned copper
Busbar dimensions (H x W): 8 x 30 mm (0.31 x 1.18 in)



ENVIRONMENTAL

Operating temperature range: -40°C to +60°
Storage temperature range: -40°C to +60°
Humidity: Max. 95% (non-condensing)
Protection class: IP22



Part Number/s:
LYN020102010
